WIKI
+ -

设备管理器设备状态码

2023-08-11 489 0

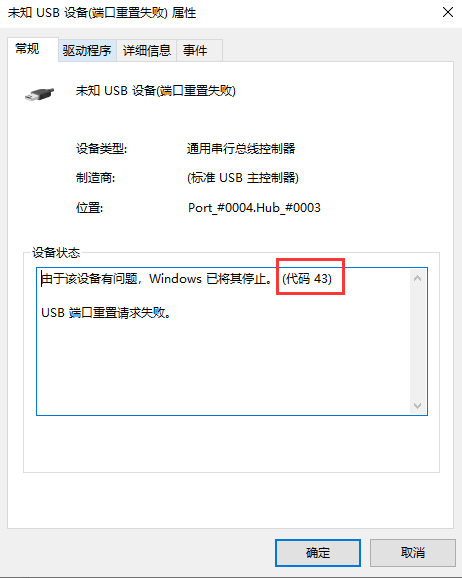

设备管理器设备状态码

常见的错误码:

  • 10 启动失败
  • 22 设备已经被禁用
  • 45 设备未在线

该错误码定义在:

C:\Program Files (x86)\Windows Kits\10\Include\10.0.18362.0\shared\cfg.h

详见:

#define CM_PROB_NOT_CONFIGURED             (0x00000001)   // no config for device
#define CM_PROB_DEVLOADER_FAILED           (0x00000002)   // service load failed
#define CM_PROB_OUT_OF_MEMORY              (0x00000003)   // out of memory
#define CM_PROB_ENTRY_IS_WRONG_TYPE        (0x00000004)   //
#define CM_PROB_LACKED_ARBITRATOR          (0x00000005)   //
#define CM_PROB_BOOT_CONFIG_CONFLICT       (0x00000006)   // boot config conflict
#define CM_PROB_FAILED_FILTER              (0x00000007)   //
#define CM_PROB_DEVLOADER_NOT_FOUND        (0x00000008)   // Devloader not found
#define CM_PROB_INVALID_DATA               (0x00000009)   // Invalid ID
#define CM_PROB_FAILED_START               (0x0000000A)   //
#define CM_PROB_LIAR                       (0x0000000B)   //
#define CM_PROB_NORMAL_CONFLICT            (0x0000000C)   // config conflict
#define CM_PROB_NOT_VERIFIED               (0x0000000D)   //
#define CM_PROB_NEED_RESTART               (0x0000000E)   // requires restart
#define CM_PROB_REENUMERATION              (0x0000000F)   //
#define CM_PROB_PARTIAL_LOG_CONF           (0x00000010)   //
#define CM_PROB_UNKNOWN_RESOURCE           (0x00000011)   // unknown res type
#define CM_PROB_REINSTALL                  (0x00000012)   //
#define CM_PROB_REGISTRY                   (0x00000013)   //
#define CM_PROB_VXDLDR                     (0x00000014)   // WINDOWS 95 ONLY
#define CM_PROB_WILL_BE_REMOVED            (0x00000015)   // devinst will remove
#define CM_PROB_DISABLED                   (0x00000016)   // devinst is disabled
#define CM_PROB_DEVLOADER_NOT_READY        (0x00000017)   // Devloader not ready
#define CM_PROB_DEVICE_NOT_THERE           (0x00000018)   // device doesn't exist
#define CM_PROB_MOVED                      (0x00000019)   //
#define CM_PROB_TOO_EARLY                  (0x0000001A)   //
#define CM_PROB_NO_VALID_LOG_CONF          (0x0000001B)   // no valid log config
#define CM_PROB_FAILED_INSTALL             (0x0000001C)   // install failed
#define CM_PROB_HARDWARE_DISABLED          (0x0000001D)   // device disabled
#define CM_PROB_CANT_SHARE_IRQ             (0x0000001E)   // can't share IRQ
#define CM_PROB_FAILED_ADD                 (0x0000001F)   // driver failed add
#define CM_PROB_DISABLED_SERVICE           (0x00000020)   // service's Start = 4
#define CM_PROB_TRANSLATION_FAILED         (0x00000021)   // resource translation failed
#define CM_PROB_NO_SOFTCONFIG              (0x00000022)   // no soft config
#define CM_PROB_BIOS_TABLE                 (0x00000023)   // device missing in BIOS table
#define CM_PROB_IRQ_TRANSLATION_FAILED     (0x00000024)   // IRQ translator failed
#define CM_PROB_FAILED_DRIVER_ENTRY        (0x00000025)   // DriverEntry() failed.
#define CM_PROB_DRIVER_FAILED_PRIOR_UNLOAD (0x00000026)   // Driver should have unloaded.
#define CM_PROB_DRIVER_FAILED_LOAD         (0x00000027)   // Driver load unsuccessful.
#define CM_PROB_DRIVER_SERVICE_KEY_INVALID (0x00000028)   // Error accessing driver's service key
#define CM_PROB_LEGACY_SERVICE_NO_DEVICES  (0x00000029)   // Loaded legacy service created no devices
#define CM_PROB_DUPLICATE_DEVICE           (0x0000002A)   // Two devices were discovered with the same name
#define CM_PROB_FAILED_POST_START          (0x0000002B)   // The drivers set the device state to failed
#define CM_PROB_HALTED                     (0x0000002C)   // This device was failed post start via usermode
#define CM_PROB_PHANTOM                    (0x0000002D)   // The devinst currently exists only in the registry
#define CM_PROB_SYSTEM_SHUTDOWN            (0x0000002E)   // The system is shutting down
#define CM_PROB_HELD_FOR_EJECT             (0x0000002F)   // The device is offline awaiting removal
#define CM_PROB_DRIVER_BLOCKED             (0x00000030)   // One or more drivers is blocked from loading
#define CM_PROB_REGISTRY_TOO_LARGE         (0x00000031)   // System hive has grown too large
#define CM_PROB_SETPROPERTIES_FAILED       (0x00000032)   // Failed to apply one or more registry properties
#define CM_PROB_WAITING_ON_DEPENDENCY      (0x00000033)   // Device is stalled waiting on a dependency to start
#define CM_PROB_UNSIGNED_DRIVER            (0x00000034)   // Failed load driver due to unsigned image.
#define CM_PROB_USED_BY_DEBUGGER           (0x00000035)   // Device is being used by kernel debugger
#define CM_PROB_DEVICE_RESET               (0x00000036)   // Device is being reset
#define CM_PROB_CONSOLE_LOCKED             (0x00000037)   // Device is blocked while console is locked
#define CM_PROB_NEED_CLASS_CONFIG          (0x00000038)   // Device needs extended class configuration to start
